The Hypertherm Powermax 125 is a popular plasma cutting system known for its versatility and reliability in the metal fabrication industry. When discussing the cutting capabilities of this system, it's important to consider the consumables involved, which include the torch, electrode, nozzle, and shield cap. These consumables play a critical role in determining the maximum thickness of material that can be effectively cut.

Understanding Plasma Cutting

Plasma cutting is a process that uses a jet of superheated ionized gas to cut through electrically conductive materials. The process works by creating an electrical arc that transfers heat to the metal, causing it to melt and allowing the high-velocity plasma stream to blow the molten material away.

Factors Affecting Cutting Thickness

1. Power Supply: The amperage provided by the plasma system's power supply determines the amount of heat energy available for cutting. Higher amperage allows for cutting thicker materials.

2. Plasma Gas: The type and flow rate of the plasma gas used can affect the cutting performance. Different gases, such as air, nitrogen, oxygen, or hydrogen, have different properties that can influence the cut quality and thickness.

3. Consumables: The consumables used in the plasma system are designed to work within specific amperage ranges and with certain gases. Worn or mismatched consumables can reduce cutting performance.

4. Material Type: Different metals have varying melting points and thermal conductivities, which affect how easily they can be cut. For example, stainless steel and aluminum may require different settings and consumables compared to mild steel.

5. Cutting Technique: The skill and technique of the operator can significantly impact the quality and thickness of the cut.

6.


Hypertherm Powermax 125 Cutting Capabilities

The Hypertherm Powermax 125 is designed to handle a range of cutting applications, but its maximum cutting thickness can vary based on the factors mentioned above. Generally, the Powermax 125 is capable of cutting materials up to about 1 inch (25.4 mm) in thickness for mild steel, depending on the specific setup and conditions.

• Mild Steel: For mild steel, the Powermax 125 can typically cut up to 1 inch (25.4 mm) thick.

• Stainless Steel: The cutting capacity for stainless steel may be slightly less due to its higher melting point and tendency to form oxides during the cutting process.

• Aluminum: Non-ferrous metals like aluminum can be cut at similar thicknesses, but the process may require different gases and settings for optimal results.

Consumables and Their Role

• Torches: The torch design and quality can affect the precision and efficiency of the cut. Hypertherm offers various torches for different applications and material thicknesses.

• Electrodes: These are the heart of the plasma system, generating the arc that heats the gas. The electrode's material and design influence the amperage it can handle.

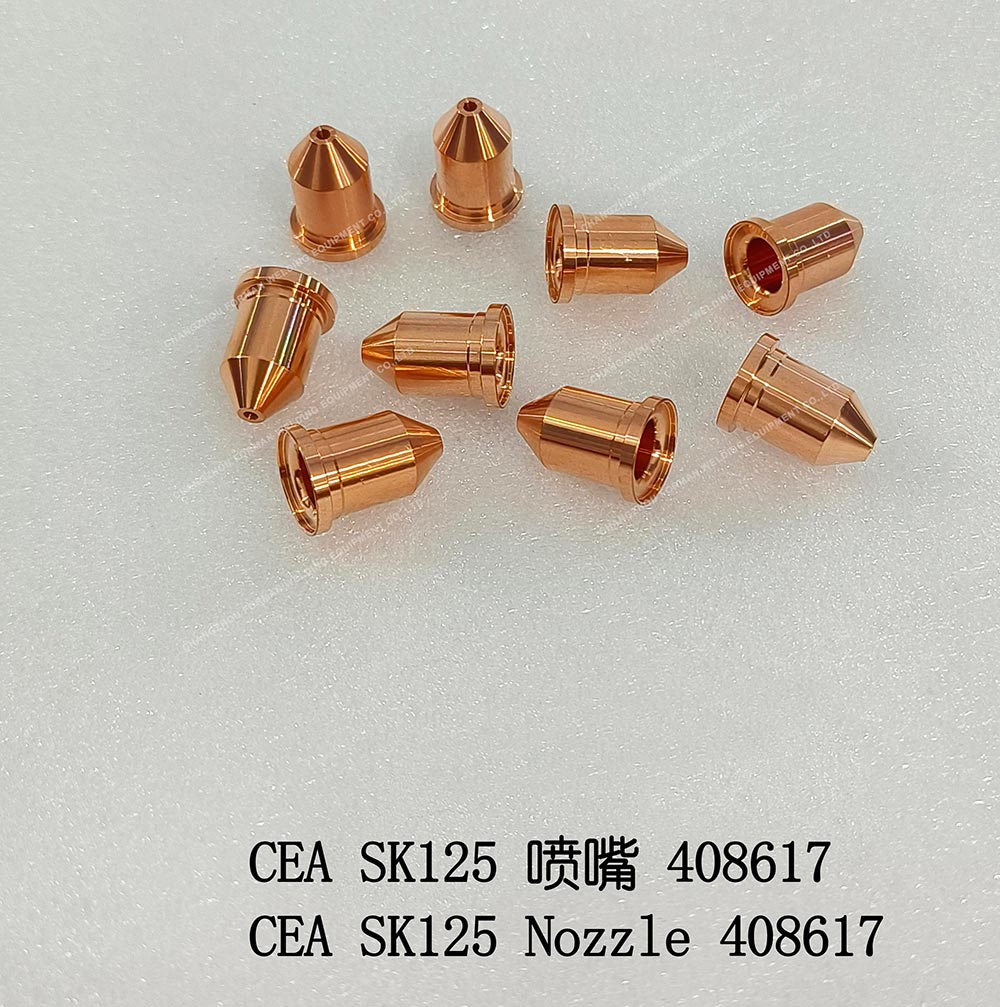

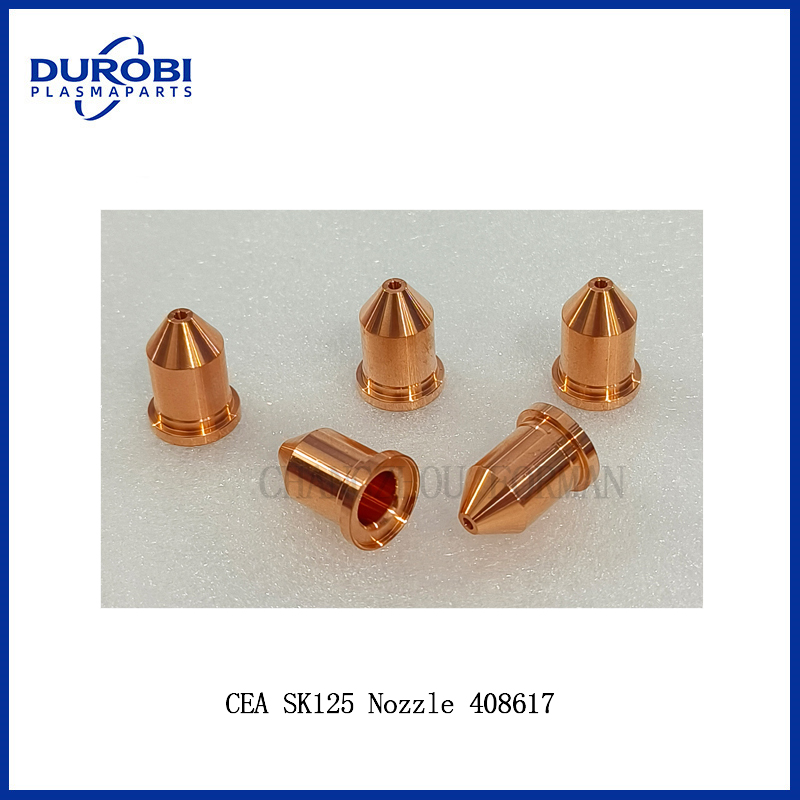

• Nozzles: The nozzle focuses the plasma stream and protects the electrode. It must be compatible with the material being cut and the cutting process.

• Shield Cap: This component helps to insulate the electrode and nozzle, protecting them from the intense heat of the plasma stream.

•


Maximizing Cutting Performance

To achieve the best cutting performance with the Hypertherm Powermax 125, it's important to:

• Use the correct consumables for the specific material and thickness being cut.

• Regularly inspect and replace worn consumables to maintain optimal cutting performance.

• Choose the appropriate plasma gas for the material and desired cut quality.

• Adjust the cutting parameters, such as amperage and travel speed, based on the material thickness and type.

The Hypertherm Powermax 125 is a versatile plasma cutting system that can handle a variety of materials up to approximately 1 inch in thickness, depending on the consumables used and the cutting conditions. By understanding the factors that affect cutting thickness and using the appropriate consumables and techniques, operators can achieve high-quality cuts with this system. As with any cutting tool, the performance can be maximized through proper maintenance, consumable selection, and operator skill.
